Solar Panel Bird Guard Mesh Installation Guide
Solar panel bird mesh installation means cutting the mesh to fit the array perimeter, bending it to match the panel edge, positioning it below the frame and securing it with compatible clips, hook wires or retaining discs. The mesh should close the outside gap without covering the solar cells.
Basic installation sequence
| 1. Measure and cut | Measure the perimeter and cut the mesh roll to practical panel lengths. |
|---|---|
| 2. Bend the mesh | Form the mesh so it follows the panel-frame edge and roof clearance. |
| 3. Attach clips or hook wires | Slide or position the selected fastening component through the mesh and frame lip. |
| 4. Add retaining discs | Use retaining discs or washers where the selected component requires them. |
| 5. Tighten and trim | Secure the mesh, trim excess wire and inspect coverage around corners and panel gaps. |
Before installation, confirm compatibility
Component choice depends on the panel-frame profile and local installation preference. For B2B orders, send panel-frame photos, mesh height, material preference and the requested clip or hook wire style before bulk pricing.
Material options to name in an RFQ
- PVC-coated steel wire mesh
- PVC-coated stainless steel wire mesh
- 304 stainless steel wire mesh without PVC coating
Installation RFQ checklist
| Panel frame photos | Useful for checking whether hook wires, aluminum clips, nylon accessories or C-type quick clips are appropriate. |
|---|---|
| Mesh height | 4 inch, 6 inch or 8 inch according to the panel-to-roof gap. |
| Roll quantity | State whether the enquiry is for 100 ft rolls, mesh-only supply or complete kits. |
| Component count | Clarify hook wire, clip and retaining disc quantity per roll or per kit. |
| Packaging | For wholesale/OEM, include carton quantity, label, barcode and instruction sheet notes. |
Common installation mistakes to avoid
- Do not cover the solar cells with mesh; the barrier belongs around the perimeter gap.
- Do not assume every clip fits every panel frame; check the frame lip or send photos before bulk ordering.
- Do not mix material names in the RFQ; PVC-coated steel, PVC-coated stainless and 304 stainless without PVC are different specifications.
- Do not price a kit without defining whether retaining discs, hook wires or clips are included.
FAQ
| Is drilling required? | Many solar mesh guard systems are discussed as no-drill perimeter installations, but the exact method depends on the selected component and panel-frame profile. |
|---|---|
| Can installers cut the mesh on site? | Yes, mesh rolls are normally cut to panel lengths, then bent and secured around the perimeter. |
| What should be checked after installation? | Check corner coverage, loose ends, mesh tension, clip hold and whether the solar cells remain uncovered. |
View installation resources or send installation requirements.

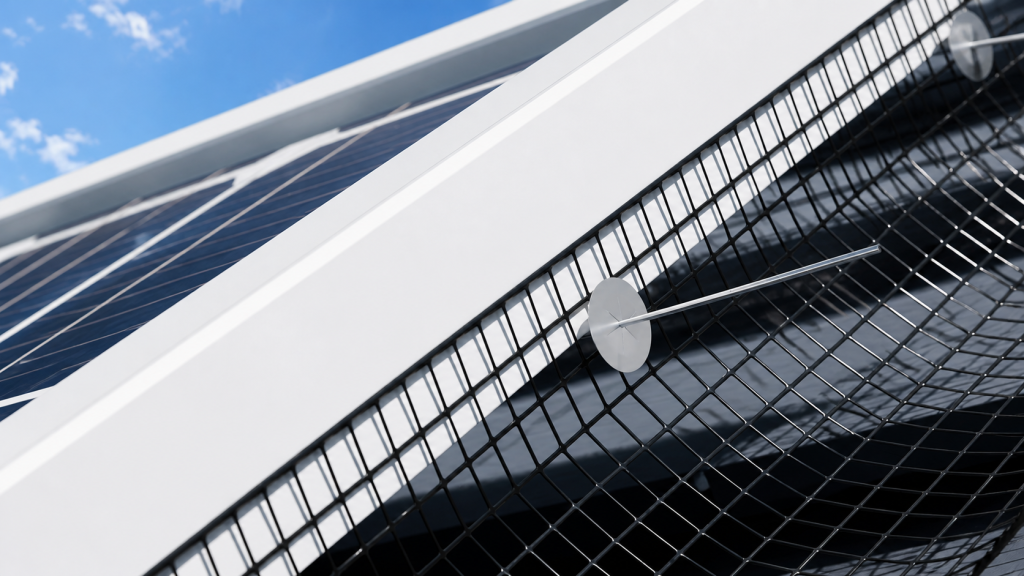

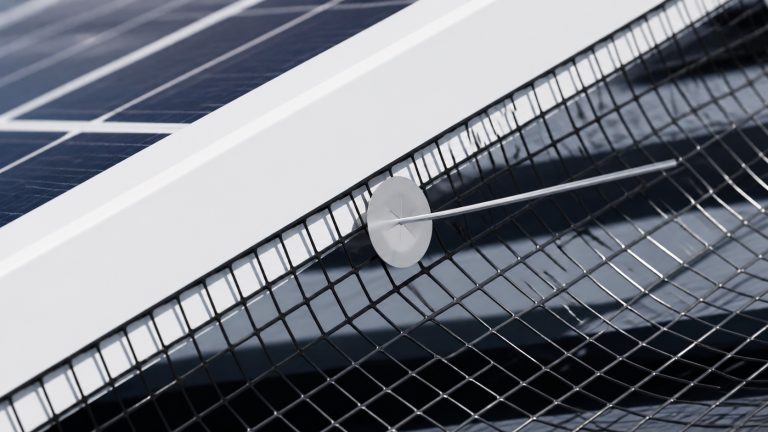

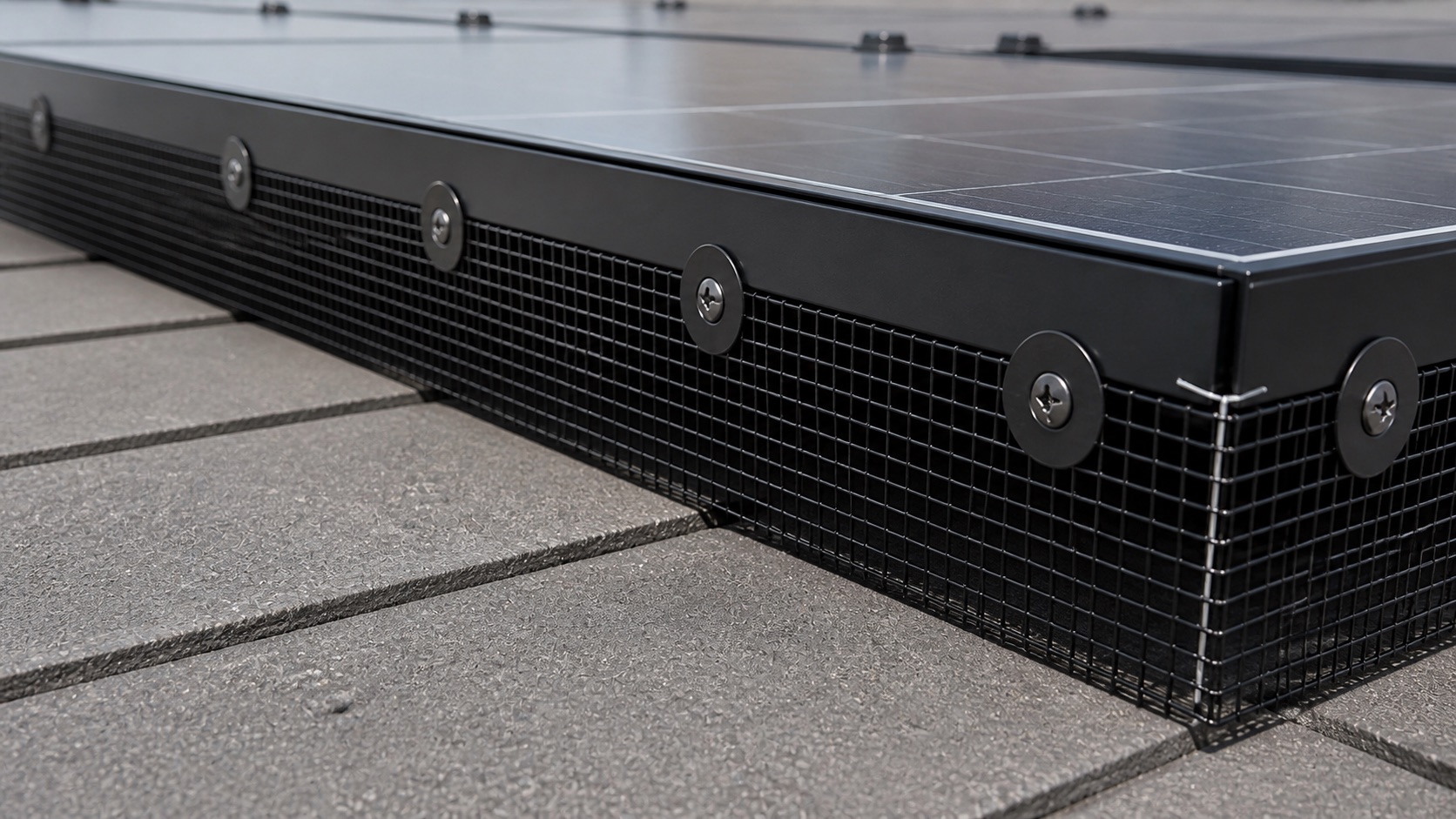

Product and installation gallery
